NEW! Powerful Battery Tool Line from Goebel features Cordless 18 Volt, Lithium-Ion Batteries, and Brushless Motors.

Experience the cutting-edge technology of Goebel's new battery tool line, featuring powerful cordless 18-volt lithium-ion batteries and advanced brushless motors. Designed for demanding applications, these tools offer superior performance and exceptional efficiency for all your professional needs.









Cordless Battery Blind Rivet and Blind Rivet Nut Tools

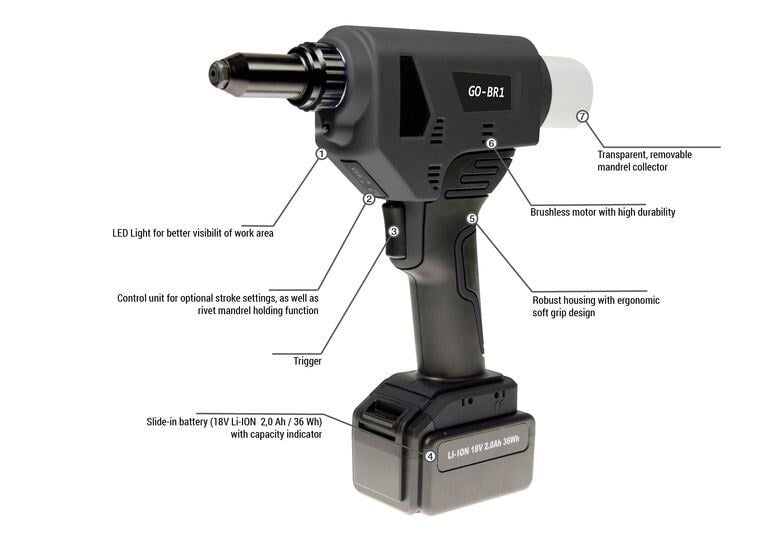

csm_BR1_webseite_ENG_fuer_Erklaerung_c889e10c6d



The powerful 18V cordless riveter line from GOEBEL consists of 8 special tools.

The Li-Ion batteries (18V 2.0Ah 36Wh) are the heart of the powerful processing tools. They guarantee freedom from maintenance, the highest energy efficiency, and a long service life. Plus, each tool purchased in the set contains two quick-change rechargeable batteries with an LED battery indicator.



Features and Benefits:

  •         Latest brushless BLDC motor technology
  •         Lightweight
  •         Ergonomically friendly
  •         Integrated LED light
  •         A firm stand for maximum safety during assembly
  •         Integrated control panel for one-touch stroke setting
  •         Patented mandrel retention function
  •         Transparent mandrel collectors
  •         Integrated automatic setting mode for series assembly
  •         Battery-powered lockbolt setter and punching tool for hexagonal holes




Austin Hardware's Available Products

PART NO. DESCRIPTION RIVETING CAPACITY WEIGHT L x H (mm) STROKE PULLING FORCE MATERIAL NOSE PIECES QUICK CHANGE BATTERY CHARGER ABS CASE SIZE
GO-100 Lithium-Ion Cordless Rivet Tool ø 3/32" up to 3/16" (ø 2.4 up to 4.8 mm) All Materials 3.75 lbs 10.75" x 11.22" (273 x 285) 0.8" 2698 lbf PE 3/32", 1/8", 5/32", 3/16" Li-Ion 14.4 V / 1.4 Ah 14.4 V Li-Ion 1.48' x 1.15' x .36'
GO-100+ Lithium-Ion Cordless Rivet Tool for Aluminum Triple Claw Blind Rivets ø 3/16", 1/4", 9/32" (ø 5.2, 6.4, 7.5 mm) Aluminum 3.75 lbs 10.75" x 11.22" (273 x 285) 0.8" 2699 lbf PE 3/16", 1/4", 9/32" Li-Ion 14.4 V / 1.4 Ah 14.4 V Li-Ion 1.48" x 1.15" x .36"
GO-200 Lithium-Ion Cordless Rivet Tool ø 5/32" up to 1/4" (ø 4.0 up to 6.4 mm) All Materials 3.75 lbs 10.75" x 11.22" (273 x 285) 1.06" 4047 lbf PE 5/32", 3/16", 1/4", 3/16", 1/4" (Monobolt®) Li-Ion 14.4 V / 1.4 Ah 14.4 V Li-Ion 1.48" x 1.15" x .36"
GO-300-UN Lithium-Ion Cordless Rivet Nut Tool 6-32 ~ 1/2-13UNC All Materials; 1/2-13UNC Aluminum/Steel 3.8 lbs 10.55" x 11.22" (268 x 285) .32" 6070 lbf PE Mandrels & Anvils: 10-24 UNC, 10-32 UNF, 1/4-20 UNC, 5/16-18 UNC, 3/8-16 UNC, 1/2-13 UNC 14.4 V Li-Ion / 4.0 Ah / 57.6 Wh 14.4 V Li-Ion 1.48" x 1.15" x .36"
GO-BR1 Lithium-Ion Cordless Rivet Tool ø 1/8" up to 3/16" (ø 3.2 up to 4.8 mm) All Materials 3.08 lbs 9.72" x 9.84" (247 x 250) B = 0.83" / S = 0.59" 2698 lbf PE 1/8", 5/32", 3/16" Li-Ion 18 V / 2.0 Ah 18 V Li-Ion 1.24" x 0.98" x .26"
GO-TR1 Lithium-Ion Cordless Rivet Tool for Aluminum Triple Claw Blind Rivets ø 3/16", 1/4", 9/32" (ø 5.2, 6.4, 7.5 mm) Aluminum 3.08 lbs 9.72" x 9.84" (247 x 250) B = 1.02" / S = 0.71" 2699 lbf PE 3/16", 1/4", 9/32" Li-Ion 18 V / 2.0 Ah 18 V Li-Ion 1.24" x 0.98" x .26"
GO-BR2 Lithium-Ion Cordless Rivet Tool ø 5/32" up to 1/4" (ø 4.0 up to 6.4 mm) All Materials 3.52 lbs 10.19" x 9.84" (259 x 250) B = 1.02" / S = 0.71" 4046 lbf PE 5/32", 3/16", 1/4", 3/16", 1/4" (Monobolt®), 3/16", 1/4" (GO-Lock/Premium) Li-Ion 18 V / 2.0 Ah 18 V Li-Ion 1.24" x 0.98" x .26"
GO-RN1 Lithium-Ion Cordless Rivet Nut Tool 6-32 ~ 5/16-18UNC All Materials 3.3 lbs 10.62" x 10.23" (270 x 260) .008“ - .23" 4046 lbf PE Mandrels & Anvils: 6-32UNC, 8-32UNC, 10-24UNC, 10-32UNF, 1/4-20UNC, 5/16-18UNC 18 V Li-Ion / 2.0 Ah / 36 Wh 18 V Li-Ion 14.96“ x 11.81“ x 3.15“
GO-RN2 Lithium-Ion Cordless Rivet Nut Tool 10-24 ~ 1/2-13UNC All Materials 3.3 lbs 11.49" x 10.23" (292 x 260) .01“ - .35" 6070 lbf PE Mandrels & Anvils: 10-24UNC, 10-32UNF, 1/4-20UNC, 5/16-18UNC, 3/8-16UNC, 1/2-13UNC 18 V Li-Ion / 2.0 Ah / 36 Wh 18 V Li-Ion 14.96“ x 11.81“ x 3.15“
GO-SN1 Lithium-Ion Cordless Rivet Nut Tool 10-24 ~ 3/8-16UNC All Materials 3.52 lbs 11.89" x 10.23" (302 x 260) .15“ - .61" 4721 lbf PE Mandrels & Anvils: 10-24UNC, 10-32UNF, 1/4-20UNC, 5/16-18UNC, 3/8-16UNC 18 V Li-Ion / 2.0 Ah / 36 Wh 18 V Li-Ion 14.96“ x 11.81“ x 3.15“







WARRANTY AND SERVICE

We give a 1-year guarantee from the date of sale on the purchased unit, provided that only the quick-wear parts are used properly. As a manufacturer, we have our own certified repair centre. In this centre, we can repair devices within 48 hours after an analysis and approval for repair. We are happy to offer free loan units for the interim period.





Most operators of structural blind rivets would agree that the use of the correct setting tool is crucial for a strong, fastened joint. Among the main variables to be decided when selecting a riveting tool include power-to-weight ratio, traction power rating, stroke length, ergonomics, and ability to adapt different nose assemblies to accommodate a wide variety of structural blind rivets.

Goebel Fasteners, Inc. offers a variety of tools for any application that you may encounter, and our quality is proven with each and every product we offer.

For More Information, visit Goebel's official page to learn more and view products: https://www.goebel-group.com/en/rivet-tools/akku-setzgeraete.html
